HikMicro OWL OQ35 Thermal monocular (demo)

  • Brand: Hikmicro
  • Product code: DS-2TS06-35XF/W-OQ35-demo
  • Stock: 0

Was € 2629.00
Now € 1989.00

Back

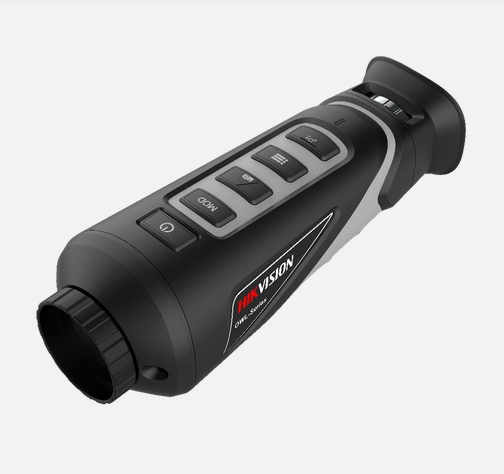

HikMicro OWL OQ35 (showroom model)

Handheld Thermal Monocular Camera
HM-TS06-35XF/W-OQ35-demo

.
HikMicro OQ35 handheld thermal monocular camera is equipped with a 640 × 512 infrared detector and a 1024 × 768 OLED display. It supports functions of observation, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, searching and rescuing, hiking, travel, and hunting, etc



Key Features
● High sensitivity thermal module with 640 x 512 resolution
● NETD < 35 mK (@25 °C,, F#=1.0)
● Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
● 1024 x 768 resolution 0.39-inch OLED display
● Built-in rechargeable Li-ion battery
● Up to 7 hours continuous operation

● 1 year guarantee on our showroom models





Specifications

Thermal Module
Image Sensor                                    VOx Uncooled Focal Plane Arrays
Resolution                                          640 × 512
Frame Frequency                              50 Hz
Pixel Interval                                      17 μm
Response Waveband                        8 μm to 14 μm
NETD                                                 Less than 35 mK (@25°C),F#=1.1
Focal Length                                      35 mm
IFOV                                                  0.49 mrad
Field of View                                      17.7° × 14.2° (H × V)
Aperture                                             F1.0
Magnification                                     1.4 - 5.6
Image Display
Monitor                                               0.39 inch, OLED, 1024 ×768
Palettes                                              Black Hot, White Hot, Red Hot, Fusion
Uniformity Correction                        Auto, Manual, External Correction
Digital Zoom                                      1× , 2× , 4 × , 8 ×
Smart Function
Hot Track                                           Yes
Detection Range                                1235 m
System
Storage                                              Built-in memory module (16 GB)
Record Video                                     Yes
Capture Snapshot                              Yes
Wi-Fi                                                  Yes
Standby Mode                                    Yes
Power Supply
Battery Type                                      Rechargeable Lithium Battery
Battery Operating Time:
            5.5 hours continuous running with CVBS and Wi-Fi hot spot function off (@25 °C)
            4.5 hours continuous running with CVBS and Wi-Fi hot spot function on (@25 °C)
Battery Capacity Display                   Yes
General
Power                                                 5 VDC/2 A, 2 W, Type-C Interface
Work Temperature/Humidity              From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less
Protection Level                                 IP67

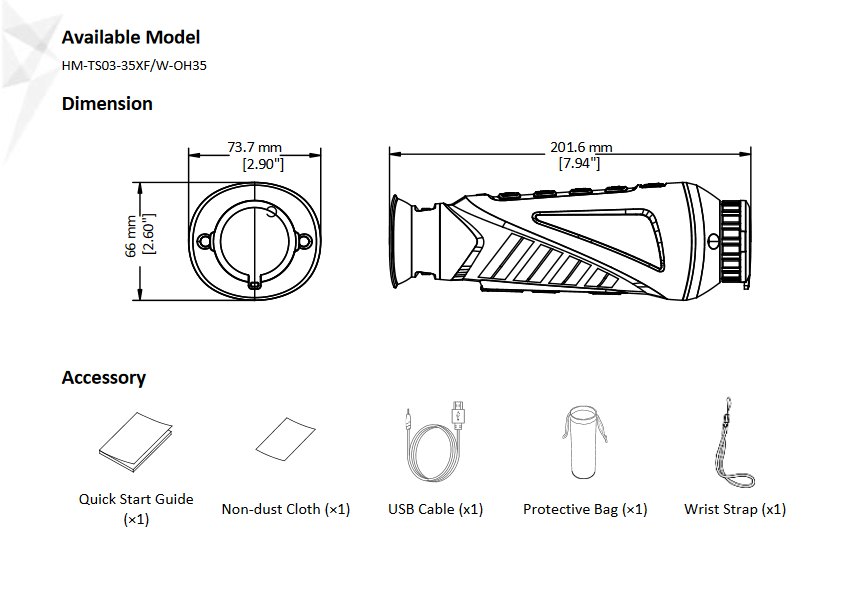

Dimension                                          201,6 mm × 73.7 mm × 66 mm
Weight                                                500 g








Order includes:

1x HikMicro OH35 (DS-2TS06-35XF/W-OQ35-demo) handheld thermal monocular (showroom model)
1x USB Cable
1x Wrist Strap
1x Protective Bag
1x Non-Dust Cloth
1x Quick Start Guide
