| Thermal Module |
| Image Sensor VOx Uncooled Focal Plane Arrays |
| Resolution 640 × 512 |
| Frame Frequency 50 Hz |
| Pixel Interval 17 μm |
| Response Waveband 8 μm to 14 μm |
| NETD Less than 35 mK (@25°C),F#=1.1 |
| Focal Length 35 mm |
| IFOV 0.49 mrad |
| Field of View 17.7° × 14.2° (H × V) |
| Aperture F1.0 |
| Magnification 1.4 - 11.2 |
| Image Display |
| Monitor 0.39 inch, OLED, 1024 ×768 |
| Palettes Black Hot, White Hot, Red Hot, Fusion |
| Uniformity Correction Auto, Manual, External Correction |
| Digital Zoom 1× , 2× , 4 ×，8× |
| Smart Function |
| Hot Track Yes |
| Detection Range 1235 m |
| System |
| Storage Built-in memory module (16 GB) |
| Record Video Yes |
| Capture Snapshot Yes |
| Wi-Fi Yes |
| Standby Mode Yes |
| Power Supply |
| Battery Type Rechargeable Lithium Battery |
Battery Operating Time:
5.5 hours continuous running with CVBS and Wi-Fi hot spot function off (@25 °C)
4.5 hours continuous running with CVBS and Wi-Fi hot spot function on (@25 °C) |
| Battery Capacity Display Yes |
| General |
| Power 5 VDC/2 A, 2 W, Type-C Interface |
| Work Temperature/Humidity From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less |
| Protection Level IP67 |

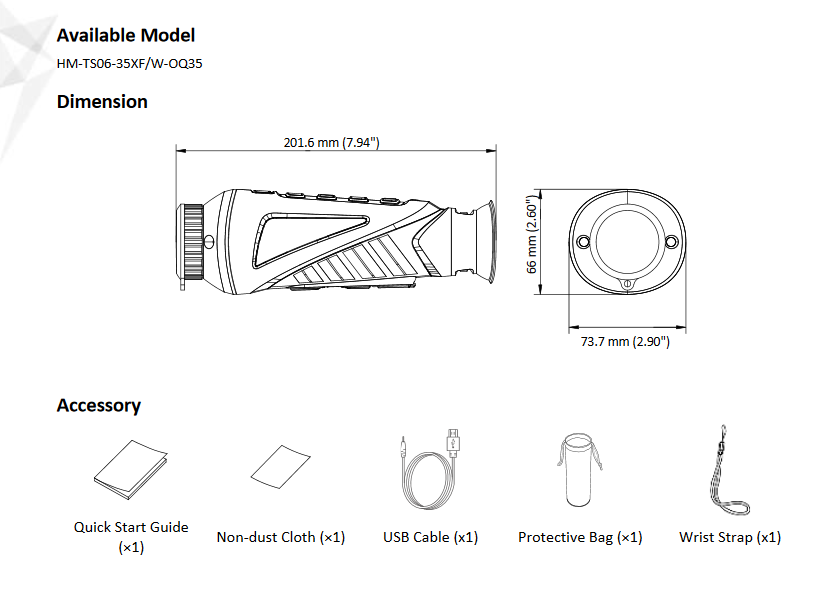

| Dimension 201.6 mm × 73.7 mm × 66 mm (7.94" × 2.90" × 2.60") |
| Weight 500 g (0.55 lb) |
