Hikmicro LYNX Pro LH25 Thermal monocular

Hikmicro LYNX Pro LH25 Thermal monocular

  • Brand: Hikmicro
  • Product code: HM-TS03-25XG/W-LH25
  • Stock: 1

Was € 1549.00
Now € 1399.00

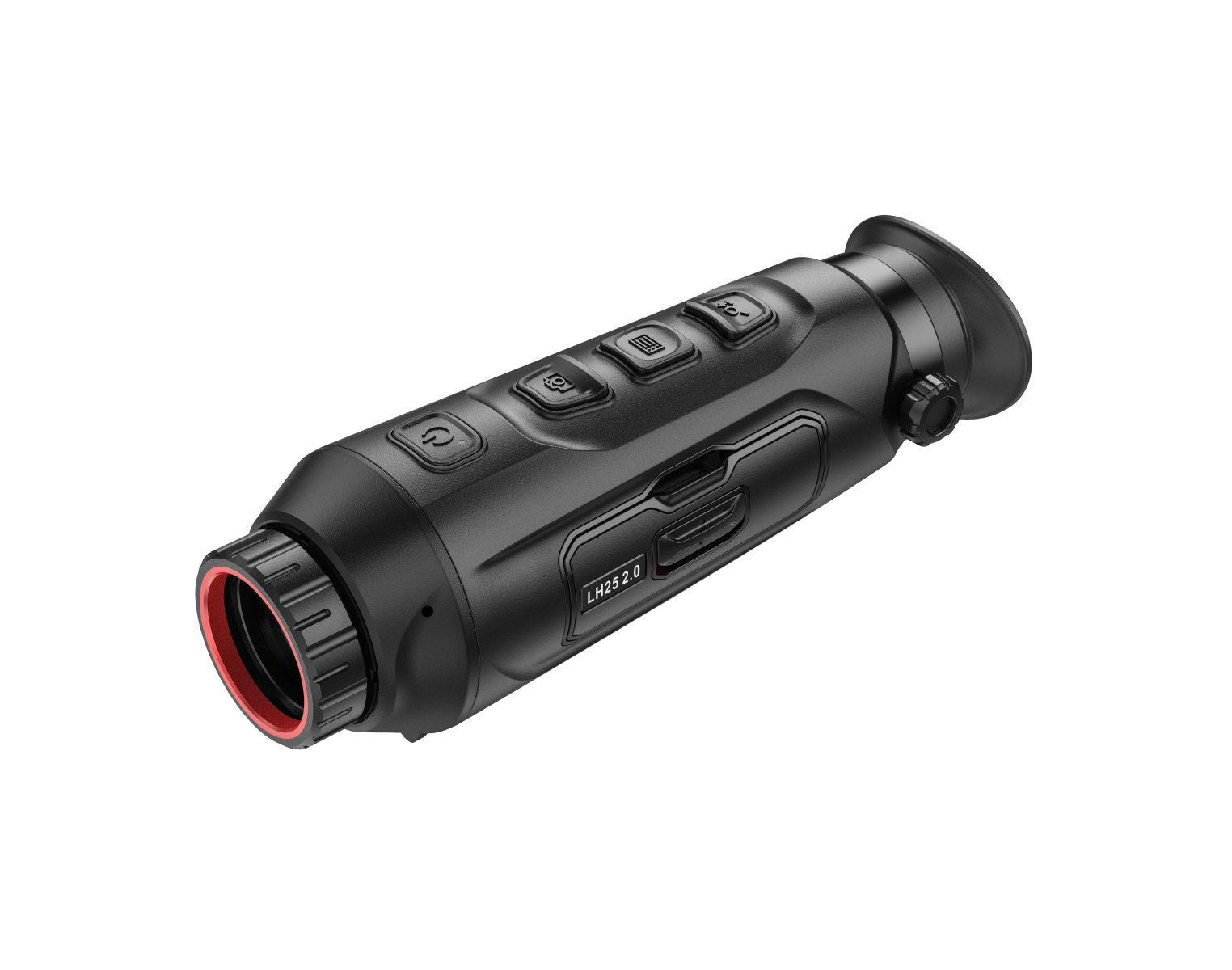

HikMicro LYNX Pro LH25 (NEW)
Handheld Thermal Monocular Camera
HM-TS03-25XG/W-LH25


HikMicro LYNX Pro LH25 handheld thermal monocular camera is equipped with a 384 × 288 infrared detector and a 1280 × 960 LCOS display. It supports functions of observation, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, searching and rescuing, hiking, travel, and hunting, etc.



Key Features
● 384 × 288 resolution, 12 μm, high sensitivity detector
● Adaptive AGC, DDE, 3D DNR, NETD less than 35 mk (@25°C), F#=1.0
● 1280 × 960 resolution 0.4-inch LCOS display
● Built-in rechargeable lithium battery
● Up to 7.5 hours continuous running
● Wi-Fi hot spot
● Type-C Interface

● 10 years guarantee on the sensor *(HIK guarantees that the sensor will deliver the same sensor performance for 10 years)
● 2 years guarantee on the integrated battery
● 3 years guarantee on the entire device (excluding battery)






Specifications
Thermal Module
Image Sensor                                    Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution                                 384 × 288
Pixel Interval                                      12 μm
Response Waveband                        8 μm to 14 μm
NETD                                                 less than 35 mk (@25°C), F#=1.0
Lens (Focal Length)                           25 mm
Field of View                                      10.5° × 7.9° (H × V)
Digital Zoom                                      1 ×, 2 ×, 4 ×, 8 ×
Aperture                                             F1.0
Magnification                                     2.45 to 19.6
Image Display
Monitor                                               0.4 inch, LCOS, 1280 × 960
FFC (Flat Field Correction)               Auto, Manual, External Correction
Palettes                                              Black Hot, White Hot, Red Hot, Fusion
Frame Frequency                              50 Hz
Smart Function
Wi-Fi Hot Spot                                   Yes
Standby Mode                                   Yes
Detection Range                                1180 m
System
Storage                                              Built-in memory module (8 GB)
Record Video                                                 Yes
Capture Snapshot                              Yes
Power Supply
Battery Type                                      Lithium battery
Battery Operating Time:


7.5 hours continuous running with Wi-Fi hot spot function off (@25°C)
6 hours continuous running with Wi-Fi hot spot function on (@25°C)
Battery Capacity Display                   Yes
General
Power                                                            5 VDC/2 A, 1.5 W, Type-C Interface
Working Temperature                       -20 °C to 55 °C (-4 °F to 131 °F)
Protection Level                                 IP67
Dimension                                          171 mm × 61 mm × 57 mm (6.73" × 2.40" × 2.24")
Weight                                                310 g (0.68 lb)






Order includes:


1x Hikmicro LYNX PRO LH25 (DS-2TS03-25XG/W-LH25) handheld thermal monocular
1x USB Cable
1x Wrist Strap
1x Protective Bag
1x Non-Dust Cloth
1x Quick Start Guide
